  • product name: Dobladora de perfiles W24S-6
  • Product number:5

    Información general

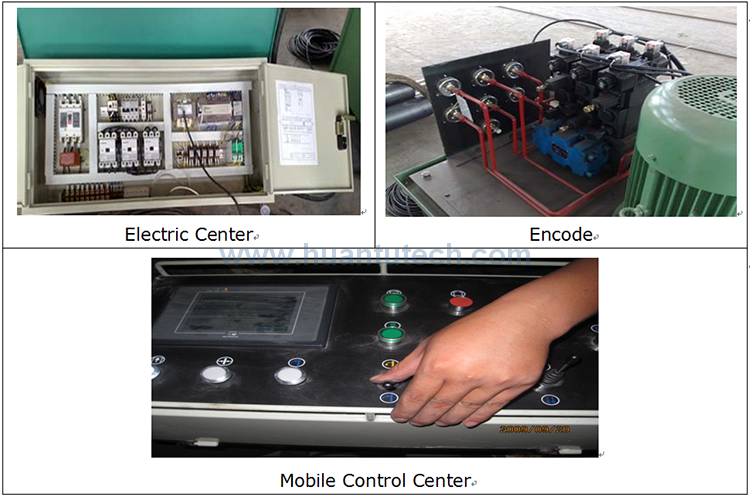

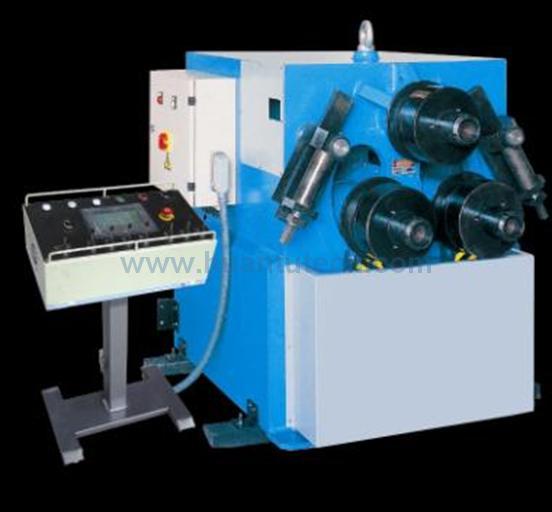

    Es el modelo W24S-6,con dispositivo hidráulico. Se puede usar para rodar "U" "O" y espiral & nbsp; formas Configuramos PLC avanzado,mesa de operaciones móvil,y Siemens Electrical (380V / 50HZ / 3PH). Con 3 juegos de modelos de doblado de tubos.

    Datos técnicos principales

    No.

    Datos técnicos

    W24S-6

    1

    Max. Bending resistant modulus

    6CM3

    2

    Yield limit

    245Mpa

    3

    Mold Diameter

    different specification Profile matches with different specification mold

    4

    Down roller speed

    180-200mm/ min

    5

    Min. Rolling diameter under full load condition

    Depends on the profile material

    6

    Up roller diameter

    Ф   150 mm

    7

    Down roller diameter

    Ф   120 mm

    8

    Bending speed

    5m/min

    9

    Electrical elements

    Siemens,Germen

    10

    Hydraulic pressure

    18Mpa

    11

    Hydraulic system

    Yuken,Japan

    12

    Motor

    7.5KW (Shanghai Lichao)

    13

    Weight

    2000KGS

    14

    Dimension (L*W*H)

    1500X1500X1200mm


    Parámetros técnicos

    Parámetro técnico



    W24S

    W24S-6

    the modulus of elasticity in static bending



      6

    rolling speed(m/min)



    6

    yield limit(mpa)



    △S=250

    angle steel inturn



    max. section(mm)

    40×5

    min. u-bend dia.(mm)

    800

    min. section(mm)

    20×3

    min. u-bend dia.(mm)

    400

    angle steel outturn



    max. section(mm)

    50×5

    min. u-bend dia.(mm)

    800

    min. section(mm)

    20×3

    min. u-bend dia.(mm)

    400

    channel steel inturn



    channel steel model

    8

    min. u-bend dia.(mm)

    600

    channel steel outturn



    channel steel model

    8

    min. u-bend dia.(mm)

    700

    flat steel bend horizontally



    max. section(mm)

    100×18

    min. u-bend dia.(mm)

    600

    flat steel bend vertically



    max. section(mm)

    50×12

    min. u-bend dia.(mm)

    500

    steel pipe



    max. section(mm)

    42×4

    min. u-bend dia.(mm)

    500

    steel rob



    max. section(mm)

    38

    min. u-bend dia.(mm)

    450

    square tube



    max. section(mm)

    45×3

    min. u-bend dia.(mm)

    750


    Dibujo simple











    Garantía de instalación y servicio de capacitación:
    1.Nuestro tiempo de garantía es de 5 a?os a partir de la fecha B / L. &Nbsp; Si algún componente se da?a durante el tiempo de garantía,podemos enviar el componente al cliente por DHL,TNT libremente.
    2.Nuestra fábrica puede enviar a nuestro ingeniero a la instalación de fábrica del cliente,comisión y capacitación libremente. El cliente proporciona los boletos de viaje doble,comida y alojamiento para nuestro ingeniero. El cliente también puede enviar al ingeniero a nuestra fábrica para conocer la operación y realizar el mantenimiento libremente.
    3.Nuestra fábrica brinda el servicio al cliente para siempre,si el cliente necesita ayuda para la operación,puede contactarnos por Skype,correo electrónico,teléfono,Whatsapp y Wechat en cualquier momento,brindamos servicio en línea las 24 horas.
